Calibration Gas Regulators

A regulator sets how calibration gas flows from the cylinder to the detector. Fixed flow regulators deliver a steady set rate, demand flow regulators release gas only when a pumped instrument draws it, and dial-a-flow regulators let you adjust the rate. Choose by the cylinder and by the gas: nickel-plated brass for non-reactive gases, stainless steel for reactive gases.

Choose Your Regulator

Flow rate and fittings are listed on each product page.

Choosing a Cal Gas Regulator

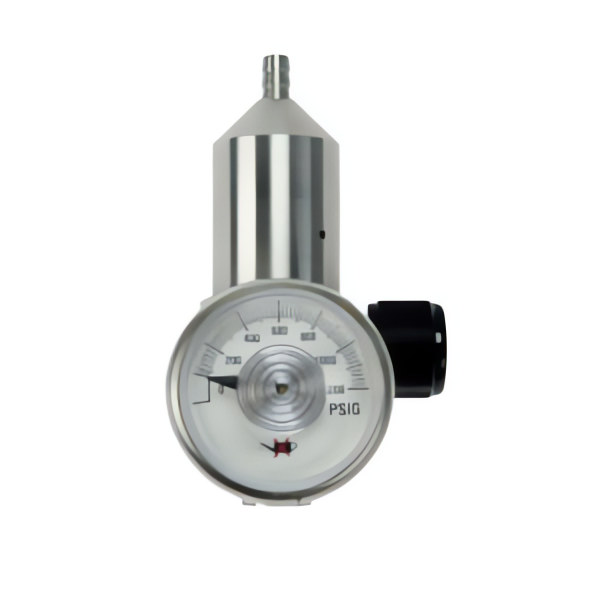

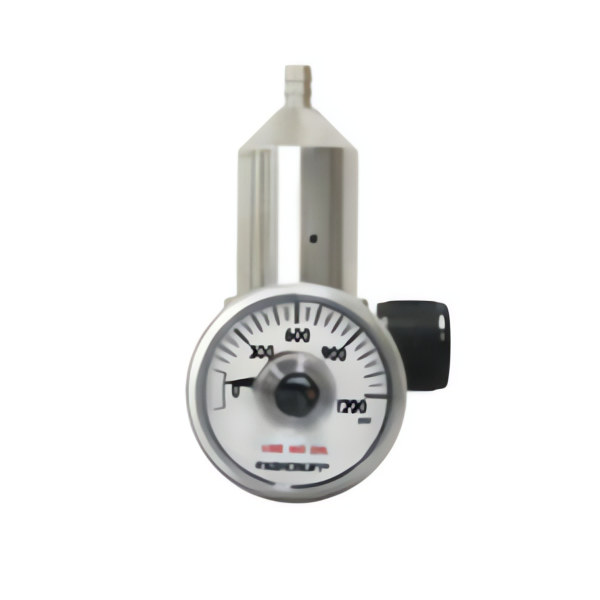

Fixed flow regulator. Delivers one set flow rate, from 0.1 to 6 lpm. A 0.5 lpm fixed flow regulator suits most diffusion detectors. The 70 Series fits aluminum cylinders with a C-10 inlet, and the stainless steel 70-SS is the stainless steel regulator for reactive gases such as chlorine, hydrogen chloride and ammonia.

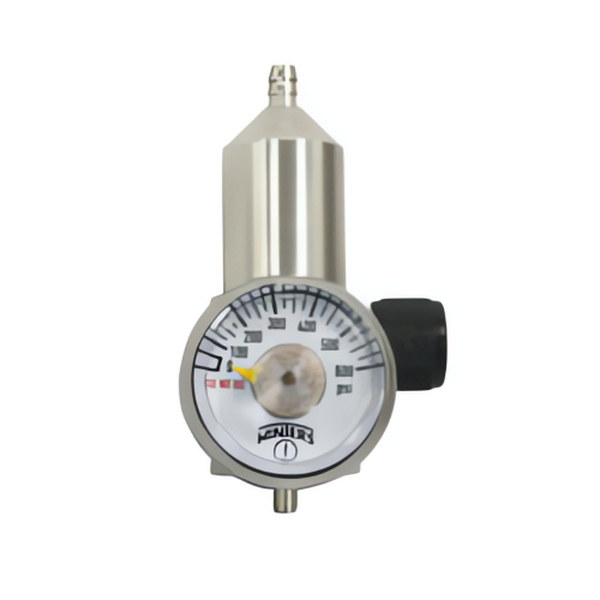

C-10 or CGA 600 regulator. Match the regulator inlet to the cylinder valve. Aluminum cylinders use a C-10 regulator. The 17 L and 34 L steel cylinders use a CGA 600 regulator, our 71 Series.

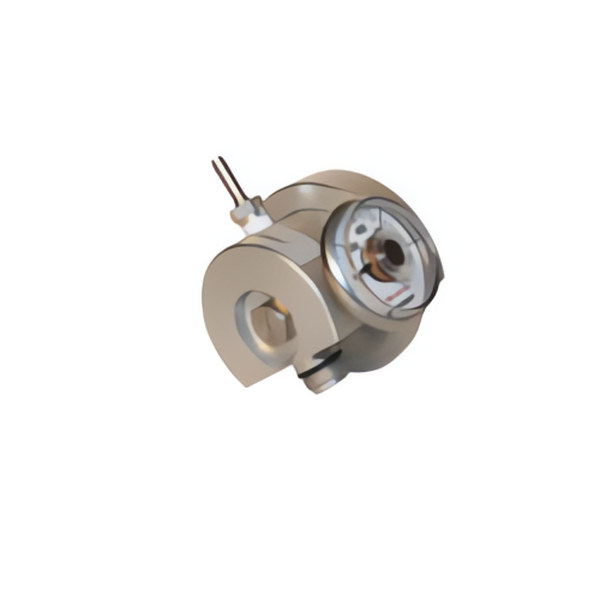

Demand flow regulator. Gas flows only when the detector pump draws it, so nothing is wasted between tests. The 75-DFR comes with a C-10 or CGA 600 inlet.

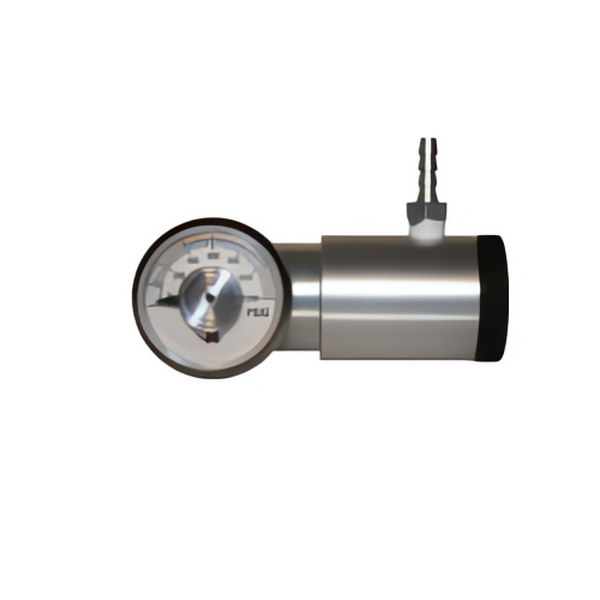

Dial-a-flow (variable flow) regulator. The 74-DAF clicks between 11 flow settings from 0.3 to 8 lpm, so one regulator covers several detectors.

Trigger valve cylinders. Our 10 and 11 liter trigger cylinders have the valve built in, so no regulator is needed for a quick bump test.
